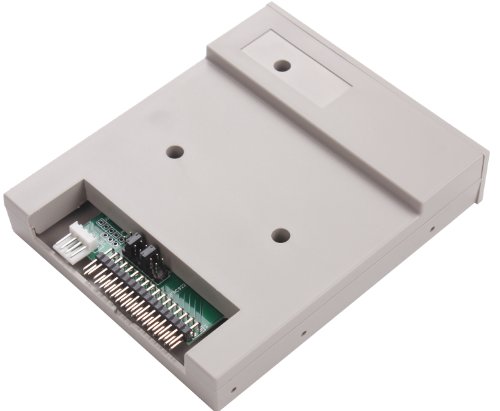

- Floppy driver with below function needed:Model: SFRM72-FU-DL, Floppy driver with 34pin interface, and 5V DC power plug (example: SONY YE-DATA ALPS TEAC EPSON PANASONIC NEC ). Use 2DD flpppy disk with 720KB capacity. Format of disk : Cylinders: 80 Tracks: 160 Sectors/Track: 9 Bytes/Sector: 512 Data transfer rate: 500 kbps Encoding method: MFM.
- Use normal usb flash drive as the medium for transfer design, support FAT16/FAT32 format.34pin floppy driver interface, 5V DC power supply, easy to install.Capacity: 720KB 2DD Cylinders: 80 Tracks: 160 Sectors/Track: 9 Bytes/Sector: 512 Data
- transfer rate: 500 kbps Encoding method: MFM.720KB built-in flash memory, with FAT12 format, used for cache data from usb flash drive. Within 720KB capacity of Files in root directory or 999 folders can be searched.
- Long file name and 4-level directory in 999 folders supported.Jumpers with function for different machines. 100 disk image file supported. (used for machine with non FAT disk format, example for make boot disk)

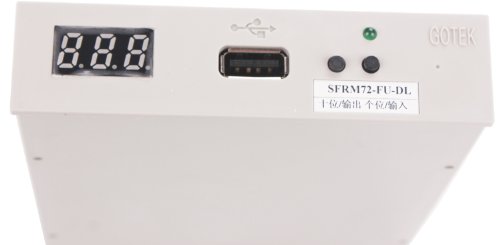

- 8segment numbers: represent folder name.Green led: status of read and write operation. USB port: connect usb flash drive
-
Information
-
Twitter
-
Pinterest
-
Youtube
-
Facebook
Victor W Black
Five Stars
Product worked great.
Michelle Donley
Five Stars
Decide is so good for my. I'm so hippy about this shoping
