Features:

  • The chip is facing down, the pure gold process, and the heat dissipation function is strengthened.

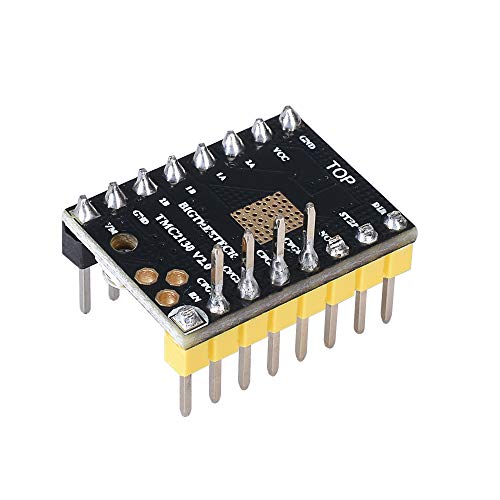

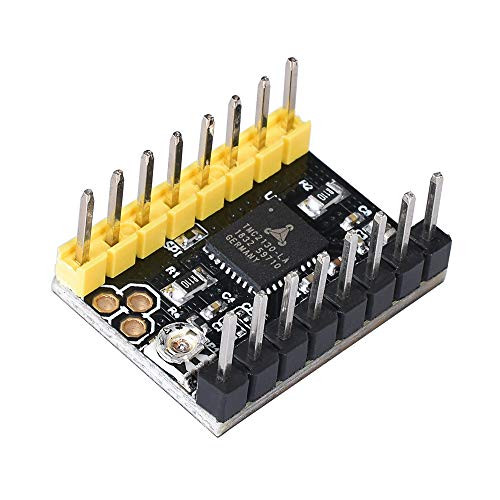

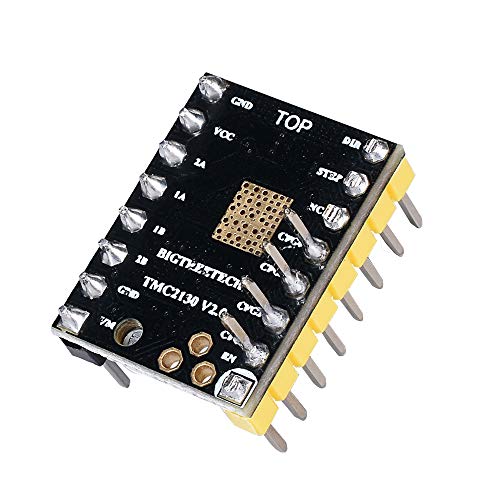

  • Highlights: TMC2130 V2.0 is a new module that has been optimized .
  • Working Performance: The use of sequexternal sequencer can greatly reduce the working load of the chip, effectively avoiding the errors caused by the chip overload, the missing step and the trouble.
  • Compatible: MKS Gen V1.4/mks Gen L v1.0/ramps 1.6/skr v1.3

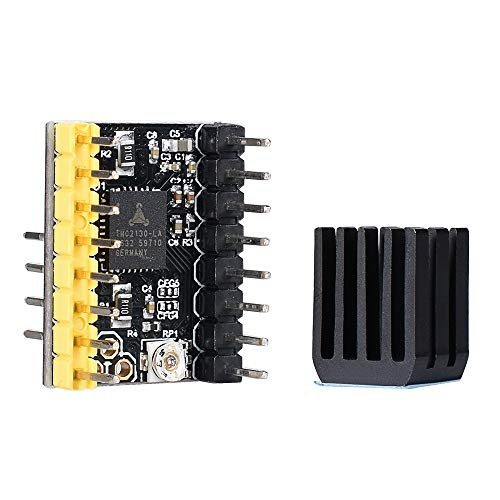

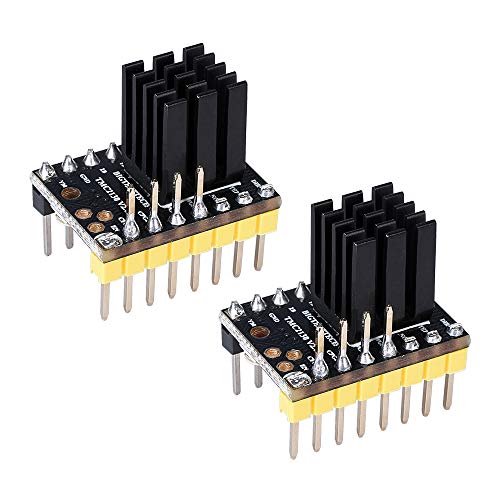

  • Note: This module is similar to TMC2100, which produces a lot of thermal energy at work.Therefore, in the use of the process, it is necessary to increase the radiator and cooling fan to cool, reduce the loss of the steps and operating deviations.
As expected based on reviews

I give this 5 stars not because it's perfect but because it's well made other than the caveats mentioned in other reviews about the SPI pins. Since I knew about those beforehand and they are that way in all the other boards that I've seen which use this design I can't complain about that. Having to remove a surface-mount component and solder a tiny jumper to enable SPI mode wasn't a huge deal but I'm used to dealing with soldering such things and have a soldering iron with an appropriate tip. I wouldn't recommend trying that with a Radio Shack special but if you've got an at least somewhat fine iron, a steady hand and the know how to use them to remove a surface mount passive and apply just enough solder to bridge a jumper without bridging to the pad next to it, you'll be fine. Bigger pads and more spacing between the different jumpers would be welcome but I'm happy enough with a great stepper controller module for this price and manufacturing quality.

Worked like a charm

Got these to replace the controllers on the Elkslaser pro. Worked without any issues.
